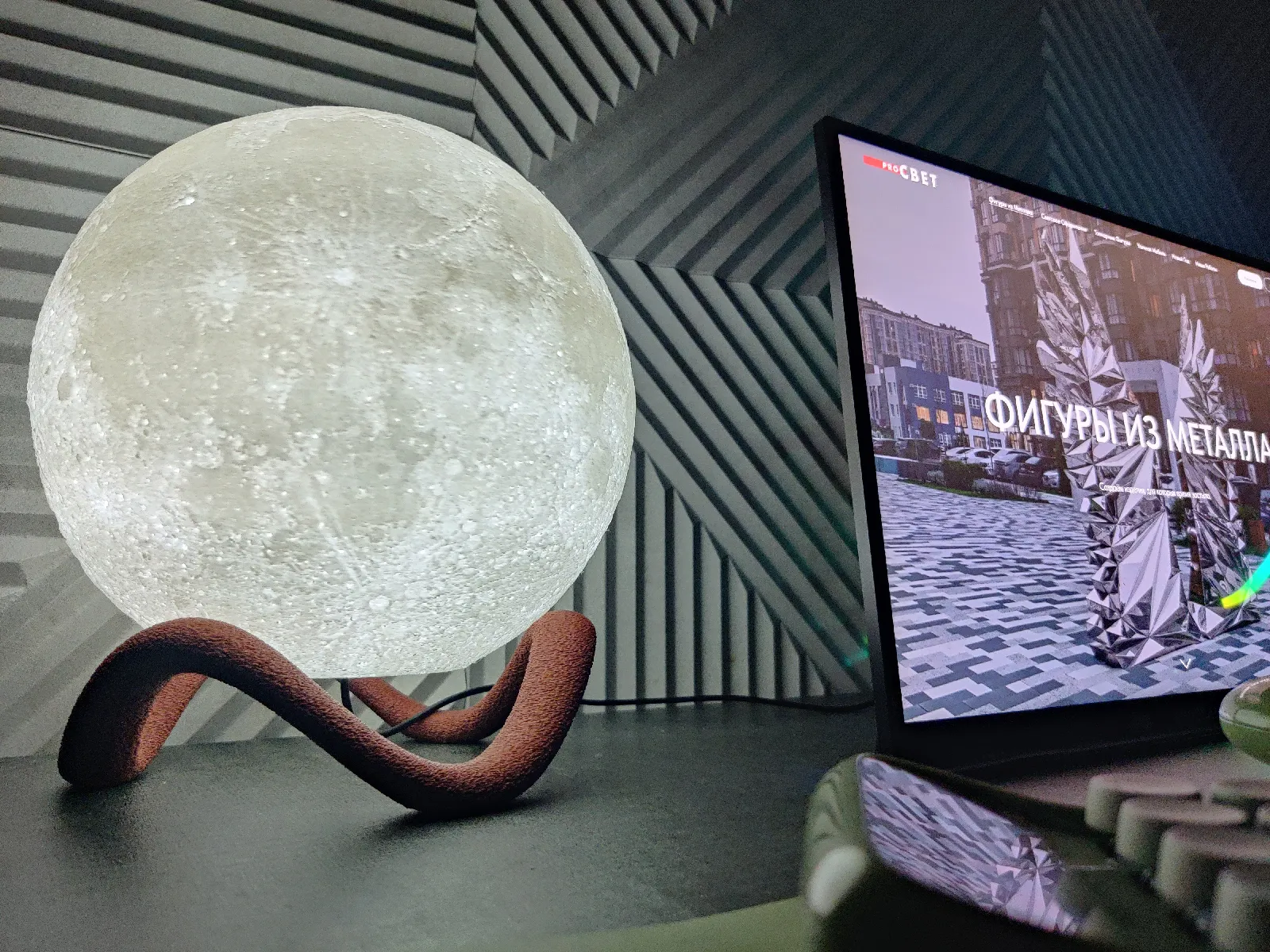

Moon Lamp

Product Description

Please read the entire text before printing! I often make the mistake of not doing so.

Additional Notes

1. Model: Moon Appr. Diameter: 210 mm Surface: Moon Displacement Map + Moon Color Map (Lithophane). Both from NASA Adapter Important Note: I use a tiny USB light (link to amazon USB light) with a USB extension cable (link to amazon USB extension cable), so that my adapter only needs a hole for a cable. You may need to look at “LightPlacement (BetterFit).stl” to edit it according to your own needs Openning Diameter: 58 mm. This means that you can fit a cylinder with 58 mm diameter inside the lamp Connection Type: Bayonet Connection Maximum Slope of Overhangs: 45 degrees. Thus, you will face no issues with overhangs Tolerances were tested thoroughly, so the adapter fits easily Stand Appr. Width: 180 mm Appr. Height: 58 mm 2. Print Instructions: I printed the Moon Lamp on a Flashforge Adventurer 5M with 0.4 mm nozzle Moon Recommended material: Basic white PLA Layer Height: 0.2 mm Sparse infill density: 100% Sparse infill pattern: Concentric Brim type: Outer and inner brim Brim width: 65 mm. You can print it without a brim, but I had a problem when printing almost finished, so next time I set brim width to maximum. Adapter Ring Modifier (optional, but saves a lot of material): Sparce infill density: 5% Sparse infill pattern: Grid Everything else is default orca slicer settings. Adapter Halves Recommended material: Basic white PLA Layer Height: 0.2 mm Sparse infill density: 5% Sparse infill pattern: Grid Everything else is default orca slicer settings Stand Recommended material: Brown PLA with 15% wood Layer Height: 0.2 mm Position below surface: 1.05 mm. This increases bottom surface area Wall loops: 3. This helps to avoid any micro holes in the surface Fuzzy skin: Countour Fuzzy skin noise type: Classic Fuzzy skin point distance: 0.5 mm Fuzzy skin thickness: 0.5 mm Top surface floor ratio: 1.7. Adds a fuzzy texture to top surfaces Top surface pattern: Hilbert Curve Enable support: true Support type: Tree (auto) Everything else is default orca slicer settings 3. License: Allowed Use The license for this model gives you complete freedom to use it in any way you like, as long as you provide attribution. Attribution The Moon and Adapter models have been developed by me from scratch. The Wavy Stand was created by @Michael1215_742401. Extras The general concept of a “Moon Lamp” has been explored by creators such as @thisis3dprinted, @FrankDeschner, u/moononournation. I saw their content at one point or another and decided to mention them here even though my model is only based on the gereral idea of a Moon Lamp, which cannot be attributed to any single individual.
